Installation

This guide walks you through setting up Blazor Data Orchestrator from a fresh clone to a running application. The entire process takes minutes — Aspire handles all infrastructure (SQL Server, Azure Storage emulator) automatically, and a guided Install Wizard walks you through first-time configuration.

Prerequisites: Make sure you have met all the Requirements before starting.

Deploying to Azure? See the Deployment guide to go from git clone to a fully deployed Azure Container Apps environment with a single azd up command.

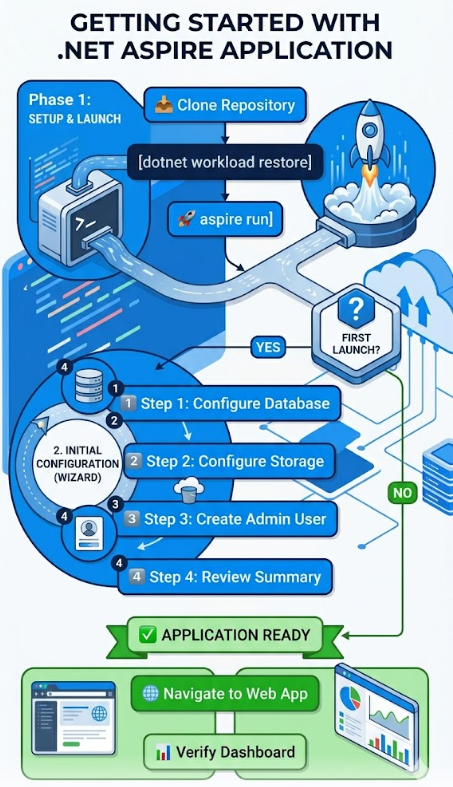

Installation Flow

Description

1. Clone the Repository

git clone https://github.com/Blazor-Data-Orchestrator/BlazorDataOrchestrator.git
cd BlazorDataOrchestrator

2. Restore Workloads and Dependencies

dotnet workload restore
dotnet restore

Note: Do not run dotnet workload install aspire — the legacy Aspire workload is obsolete. The dotnet workload restore command restores only the workloads declared by the solution.

3. Start with Aspire

aspire run

The Aspire AppHost orchestrates all services automatically:

Resource Type Description
sqlServer Container SQL Server with persistent volume, port 1433
storage Container Azurite emulator with Blob (10000), Queue (10001), and Table (10002)
webapp Project Blazor Server web application
scheduler Project Background scheduling service
agent Project Job execution worker

All connection strings and service references are injected automatically by Aspire — no manual configuration is needed for local development.

Description

Or open in Visual Studio or Visual Studio Code and Debug/Start Without Debugging.

4. Install Wizard

Description

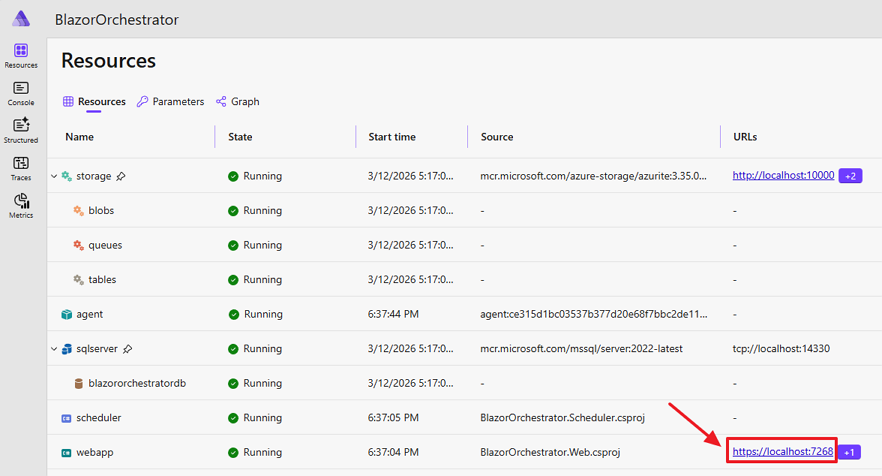

The Aspire Dashboard will open in your web browser. Locate the line that has the webapp and click the https hyperlink.

Description

On first launch, the web application presents the Install Wizard.

Description

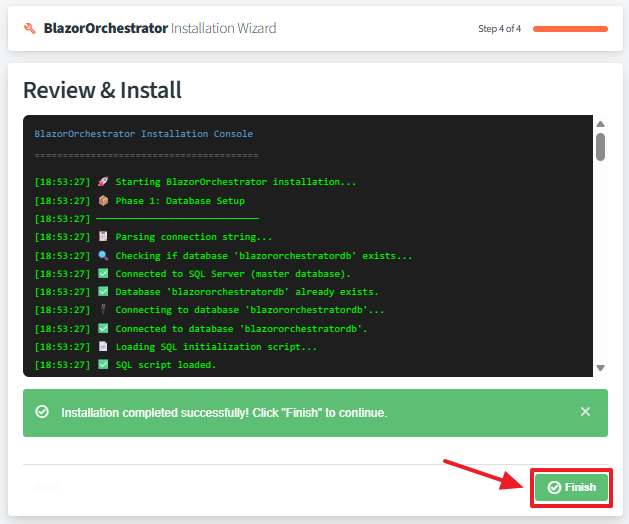

Complete the installation.

5. Verify Installation

Description

After the Install Wizard completes:

  1. Home page — You should see the job list (empty on first install).
  2. Aspire Dashboard — Open the Aspire dashboard URL (shown in the terminal output) to verify all services show a healthy status.
  3. Containers — Confirm that the SQL Server and Azurite containers are running in Docker Desktop.

Configuration Files

Blazor Data Orchestrator uses standard .NET configuration files. In development, Aspire injects connection strings automatically, so you typically do not need to edit these files.

File Project Purpose
appsettings.json Web, Scheduler, Agent Base configuration with connection strings
appsettings.Development.json Web, Scheduler, Agent Development-specific overrides
appsettings.json AppHost Aspire host configuration

Key Configuration Settings

{
  "ConnectionStrings": {
    "blazororchestratordb": "Server=localhost,14330;Database=blazororchestratordb;...",
    "blobs": "UseDevelopmentStorage=true",
    "queues": "UseDevelopmentStorage=true",
    "tables": "UseDevelopmentStorage=true"
  }
}

Tip: When running via aspire run, connection strings are injected by the AppHost and override values in appsettings.json. You only need to edit these files for standalone execution or production deployment.

Troubleshooting

Problem Solution
aspire run fails to start Ensure Docker Desktop is running and the .NET 10 SDK is installed
SQL Server container won't start Check that port 14330 is not in use by another process
Azurite ports conflict Check that ports 10000, 10001, 10002 are free
Install Wizard doesn't appear Clear the browser cache and navigate to the web app root URL
Database connection fails Verify the SQL Server container is healthy in the Aspire dashboard

Back to Home
